Specifications |
 |
 |
 |
Model Name |

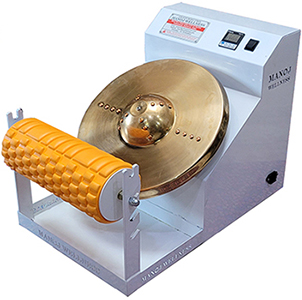

MS-PC-A |

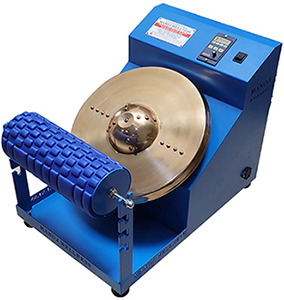

MS-PC-D |

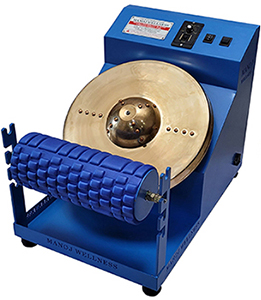

MS-PC-M |
| |
|
|
|
Mode |
Static with Session Duration Display |
Dynamic with Session Duration & Thali Rotation Speed Display |
Dynamic with Session Duration Display |
| |
|
|
|
Body Material |
MS (Mild Steel) |
MS (Mild Steel) |
MS (Mild Steel) |
Body Thickness |
1.5 millimeter |
1.5 millimeter |
1.5 millimeter |
Body Finish |
Powder Coating |
Powder Coating |
Powder Coating |
Oil-Repellent Powder-Coated Metal Body |
Yes |
Yes |
Yes |
Integrated Emergency Door in the body |
Yes |
Yes |
Yes |
Body Type |
One-piece construction with no screws used |
One-piece construction with no screws used |
One-piece construction with no screws used |
Body Dimension |
60 x 40 x 45 centimeters Big Body. User can operate the massager independently - no remote controller or assistance required (Self-Service). |
60 x 40 x 45 centimeters Big Body. User can operate the massager independently - no remote controller or assistance required (Self-Service). |
60 x 40 x 45 centimeters Big Body. User can operate the massager independently - no remote controller or assistance required (Self-Service). |
Body Weight |
12 Kgs. |
12 Kgs. |
12 Kgs. |
| |
|
|
|
Motor Type |
90W / 120W Single Phase AC |
90W / 120W Single Phase AC |
90W / 120W Single Phase AC |
Voltage Requirement |
220VAC |
220VAC |
220VAC |
Wire Winding |
Copper |
Copper |
Copper |
Motor Weight |
5 Kgs. |
5 Kgs. |
5 Kgs. |
| |
|
|
|
Controller Type |
Electronic |
Electronic |
Electronic |
Usage Counter Display |
Yes |
No |
No |
Auto Stop Timer |
Yes (Built-in) |
Yes (External) |
Yes (External) |
Timer Minute(s) Multiple |
1 |
10 / 15 |
10 / 15 |
| |
|
|
|
Thali Movement Speed Control |
No - Fixed |
Yes - Variable |
Yes - Variable |
Thali Movement Speed Range |
Fixed (35 RPM) |
Variable (4-45 RPM) / (4-55 RPM) |
Variable (4-45 RPM) / (4-55 RPM) |
Thali Movement Speed Range Options |
Available as a Custom Solution |
Available as a Custom Solution |
Available as a Custom Solution |
Thali Movement Direction |
Both Directions |
Both Directions |
Both Directions |
Ability to Change Kansa Thali Movement Direction During a Session |
No |
Yes |
Yes |
Ability to Change Kansa Thali Speed During Use |
No |
Yes |
Yes |
| |
|
|
|
Thali + Bowl Material |
Kansa (Bronze) made from Virgin Base Metals Copper and TIN (No imitation Kansa, duplication, or Kansa coating) |
Kansa (Bronze) made from Virgin Base Metals Copper and TIN (No imitation Kansa, duplication, or Kansa coating) |
Kansa (Bronze) made from Virgin Base Metals Copper and TIN (No imitation Kansa, duplication, or Kansa coating) |
Thali + Bowl Weight |
2 Kgs. |
2 Kgs. |
2 Kgs. |
Thali Diameter (Excluding Edge) |
38 centimeters (15 Inches) |
38 centimeters (15 Inches) |
38 centimeters (15 Inches) |
Thali Diameter (Including Edge) |
44 centimeters (17+ Inches) |
44 centimeters (17+ Inches) |
44 centimeters (17+ Inches) |
Edge Height |
3 centimeters |
3 centimeters |
3 centimeters |
Bowl Diameter |
15 centimeters (6 Inches) |
15 centimeters (6 Inches) |
15 centimeters (6 Inches) |
Ability of doing Massage on Thali Edges |
Yes |
Yes |
Yes |
MDF Wide Support to Thali |
Yes |
Yes |
Yes |
Acupressure Points Material |
Copper |
Copper |
Copper |
Acupressure Points on Thali |
8 |
8 |
8 |
Acupressure Points on Bowl |
12 |
12 |
12 |
Acupressure Points |
Replaceable |
Replaceable |
Replaceable |
Acupressure Points replacement can be done by |
Self, using tools provided with massager |
Self, using tools provided with massager |
Self, using tools provided with massager |
| |
|
|
|
Massager Net Weight |
24 Kgs. |
24 Kgs. |
24 Kgs. |
| |
|
|
|
Safety Lock with Keys |
Yes |
Yes |
Yes |
Oil Protection Shield to Motor |
Yes |
Yes
| Yes |
Anti Vibration & Anti-Skid Buffers |
Yes |
Yes |
Yes |
Power Cable Socket Type |
IEC C13 |
IEC C13 |
IEC C13 |
Power Cable Length Customisation Option |
Yes |
Yes |
Yes |
EVA Foam Roller Support |
Yes |
Yes |
Yes |
EVA Foam Roller Base |
PVC, not Corrugated |
PVC, not Corrugated |
PVC, not Corrugated |
EVA Foam Roller Height Options |
4 |
4 |
4 |
Low Running Noise |
Yes |
Yes |
Yes |
| |
|
|
|
Electric Safety |
Provision has done |
Provision has done |
Provision has done |
| |
|
|
|
Massager Body Opening Time |
1 Second |
1 Second |
1 Second |
| |
|
|
|
Complementary with Massager |
Wrenches - 1-2 Nos. PVC Tray - 1 No. Safety Monitoring Device - 1 No. |
Wrenches - 1-2 Nos. PVC Tray - 1 No. Safety Monitoring Device - 1 No. External Timer - 1 No. |
Wrenches - 1-2 Nos. PVC Tray - 1 No. Safety Monitoring Device - 1 No. External Timer - 1 No. |
| |
|
|
|
Offsite Warranty (On Motor Only) |
1 Year |
1 Year |
1 Year |
